How To Find Thevenin Equivalent Resistance - Find the thevenin equivalent resistance of the circuit below at terminals a), b).. V oc = v th. Once done, calculate the resistance that now appears between the two terminals labelled points a and b. Draw the thevenin equivalent network. Draw the thevenin equivalent circuit, with the thevenin voltage source in series with the thevenin resistance. You'll have a thevenin model consisting of a voltage source in series with a resistance (r th) in series with a diode and 2.5 kω resistor.
Once done, calculate the resistance that now appears between the two terminals labelled points a and b. To find vth and rth. (if dependent sources are present in the circuit, the test generator method can be used to find equivalent resistance. Yes, the thevenin voltage for the voltage divider would be 5 v. Thevenin's and norton's equivalent circuit tutorial.
Thevenin S Theorem Thevenin S Equivalent Circuit Electrical Academia from electricalacademia.com Find the thevenin resistance by removing all power sources in the original circuit (voltage sources shorted and current sources open) and calculating total resistance between the open connection points. Introduction to building a circuit in lt spice and calculating the thevenin equivalent There are several ways to find the thevenin's equivalent resistant, which are given below: How do you find thevenin equivalent resistance? The second equation may be a little confusing because with the 4ω resistor gone, and with the assumption that the opamp + input takes no current, there will be no current in the 8ω resistor. Second, reduce the load resistance to zero (short circuit). Remove the independent sources but leave the internal resistances in place. To find the thevenin equivalent voltage, we put the voltage source back in and find the voltage across the still open spot where we had the resistor.
I) remove circuit b from circuit a.
Now find the equivalent resistance between the two. Use the thevenin resistance and voltage to find the total current flowing through the load. Draw the thevenin equivalent circuit, with the thevenin voltage source in series with the thevenin resistance. Therefore, the thevenin resistance is simply [ (vth /iload. You still need to determine the thevenin resistance. To find the thevenin equivalent voltage, we put the voltage source back in and find the voltage across the still open spot where we had the resistor. How do you find thevenin equivalent resistance? To find the voltage across the 3 ω resistor, we need to know the current flowing through it. Calculate the thevenin resistance as it looks back into the network. To find vth and rth. Once done, calculate the resistance that now appears between the two terminals labelled points a and b. Thévenin equivalent circuit represents a general circuit in a form of an independent voltage source vth with a since resistance rth. The total resistance in the thevenin circuit is rtotal = (vth /iload )= (374.095 mv/60.301 µa)≈6.203 kω, where rtotal is the total resistance.
Determine the thevenin equivalent voltage (eth) by returning all sources to their previous position and state, and calculating the voltage that would appear across the two terminals labelled points a and b. So then leave the 2.5 k resistor in place. Second, reduce the load resistance to zero (short circuit). Now find the equivalent resistance between the two. To find vth and rth.
A Brief Introduction To Thevenin S Theorem Electronics Hub from www.electronicshub.org The thévenin equivalent circuit involves three parameters: Thevenin resistance is calculated by 'turning off' all independent current and independent voltage sources and calculating the resistance between the two points. (if dependent sources are present in the circuit, the test generator method can be used to find equivalent resistance. Now, calculate the total resistance between the open connection points across load terminals. Find the thevenin resistance by removing all power sources in the original circuit (voltage sources shorted and current sources open) and calculating total resistance between the open connection points. The total resistance in the circuit, r = 1 ω + 3 ω = 4 ω. (a zero voltage source is. How do you find thevenin equivalent resistance?

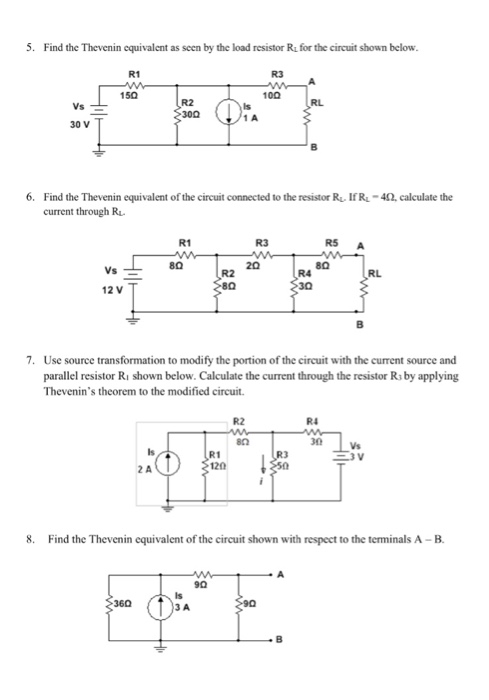

Find the value of current through 1ω resistor in the given circuit using thevenin's.
Hence, the remaining circuit has only resistances. Calculate the thevenin resistance as it looks back into the network. First simplify the circuit by replacing all voltage sources with a wire (short circuit) and all current sources with a break in the wire (open circuit.) this leaves you with a simple resistor net. We calculate thevenin's voltage by determining the. Find the thévenin equivalent circuit for: How do you find thevenin equivalent resistance? Ii) set all independent sources in circuit a to zero. This problem is done in the worked problems: Calculate the load current il using this identity il=vth/rth+rl; The thévenin equivalent circuit involves three parameters: Remove the independent sources but leave the internal resistances in place. Find v th, r th and the load current i l flowing through and load voltage across the load resistor in the circuit below using thevenin's theorem. After short circuiting all the voltage sources and open circuiting all current sources, find the equivalent resistance (r th) of the circuit, seeing from the load end.
(a zero voltage source is. Find the thevenin's equivalent resistance of the network which is seen from the load terminals. Calculate the load current il using this identity il=vth/rth+rl; Thevenin's and norton's equivalent circuit tutorial. Find the thevenin resistance by removing all power sources in the original circuit (voltage sources shorted and current sources open) and calculating total resistance between the open connection points.
Thevenin S Theorem With Solved Problem from www.electrically4u.com First, we assume that the load resistor is infinite. Here replace the 24v voltage source by a short circuit to find the equivalent resistance. To make the example more concrete, consider the following for resistance; R 1 = 1.0 kw, r 2 =900 w, r 3 =800 w, and r 4. First simplify the circuit by replacing all voltage sources with a wire (short circuit) and all current sources with a break in the wire (open circuit.) this leaves you with a simple resistor net. Find the thevenin resistance by removing all power sources in the original circuit (voltage sources shorted and current sources open) and calculating total resistance between the open connection points. Second, reduce the load resistance to zero (short circuit). After you find the node voltages, you just use the fact that the v2 node is the output of the thevenin equivalent to say vth is equal to v2.
Find the thevenin equivalent resistance of the circuit below at terminals a), b).
R 1 = 1.0 kw, r 2 =900 w, r 3 =800 w, and r 4. Ii) set all independent sources in circuit a to zero. We start by removing (in theory) r 5 to determine the thevenin equivalent to the resistor network composed of r 1 through r 4.the resulting circuit may be used to determine the potential and current through r 5 upon inserting this element into the thevenin equivalent circuit. The thévenin equivalent circuit involves three parameters: Any linear electric network or a complex circuit with current and voltage sources can be replaced by an equivalent circuit containing of a single independent voltage source vth and a series resistance rth. The total resistance in the thevenin circuit is rtotal = (vth /iload )= (374.095 mv/60.301 µa)≈6.203 kω, where rtotal is the total resistance. Use the open circuit voltage from step 2, and the equivalent resistance from step 4, to construct the thevenin equivalent circuit. Draw the thevenin equivalent network. Find the thevenin equivalent resistance of the circuit below at terminals a), b). Second, reduce the load resistance to zero (short circuit). How do you find thevenin equivalent resistance? Introduction to building a circuit in lt spice and calculating the thevenin equivalent First simplify the circuit by replacing all voltage sources with a wire (short circuit) and all current sources with a break in the wire (open circuit.) this leaves you with a simple resistor net.
To find the voltage across the 3 ω resistor, we need to know the current flowing through it how to find thevenin equivalent. Calculate the load current il using this identity il=vth/rth+rl;
